Conveyor belt cleaning equipment

Secondary Belt Cleaners

MAT-001-51 VIEW 1A MUS2 BT S-S

The MATO Secondary Belt Cleaners include:

.  MUS2, 3, 4 Secondary Belt Cleaner
.  MCS2 Secondary Belt Cleaner
.  MCS3 Secondary Belt Cleaner
.  MCS4 Secondary Belt Cleaner

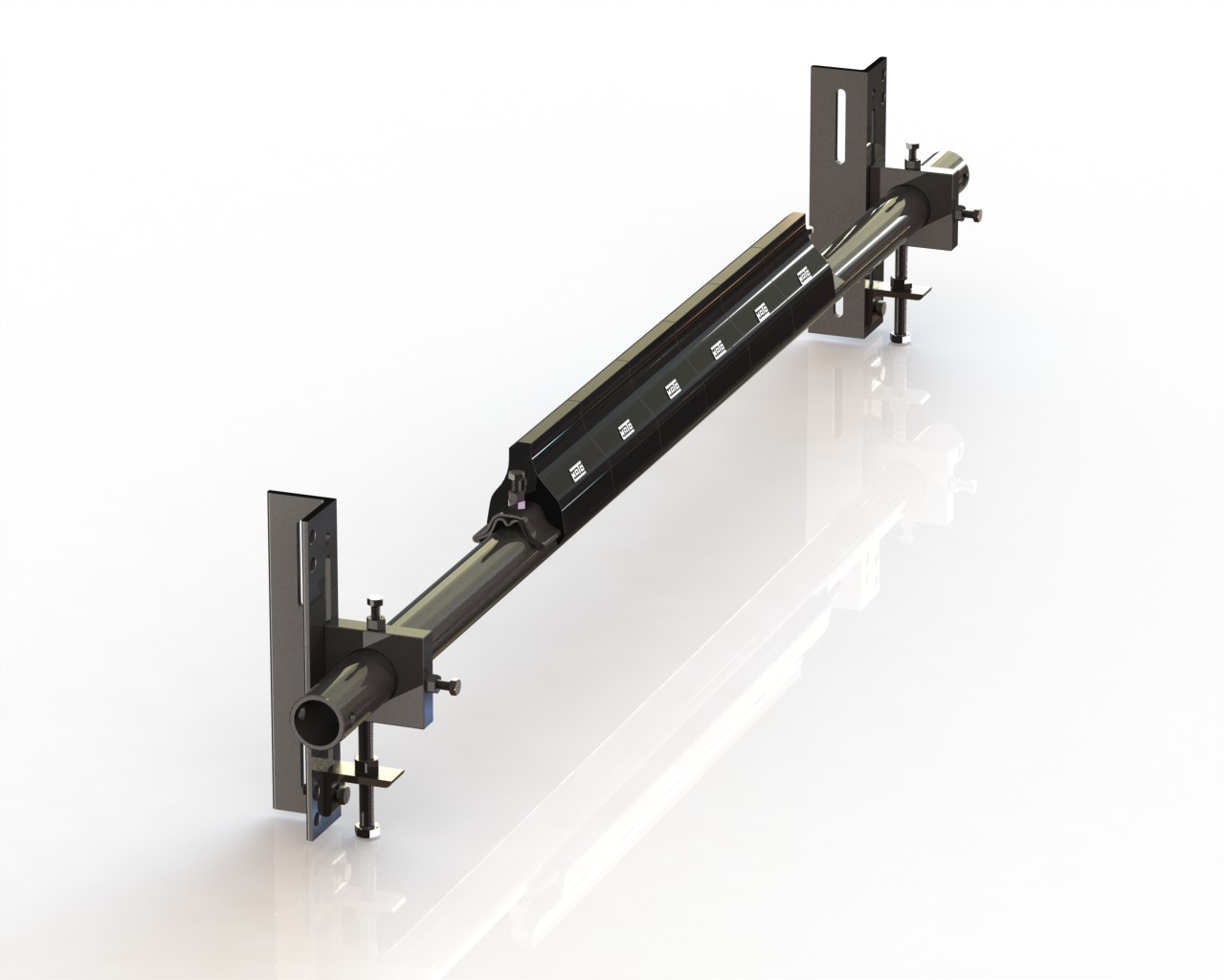

 MATO MUS2-3-4 Belt Cleaner
 Secondary Cleaner
MUS3















The MATO MUS2, 3, 4 Unique   Belt Cleaning System is   designed to allow the   cleaner blade to act   independently to conform to the conveyor belt surface.



Features:
. Easy blade replacement
. Outstanding performance on sticky material
. Clog free operation
. Various blade options
. Suitable for use with mechanical fasteners
. Air Tension Available

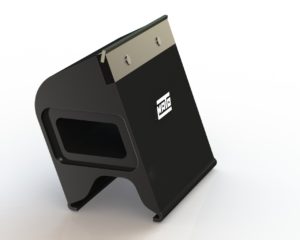

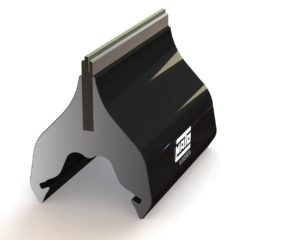

Polyurethane Blades:
Suitable for both Underground Mining and Surface applications.

Tungsten Carbide Blades: MATO offers different grades of Tungsten Carbide to suit each application e.g. Tungsten Impact where the belts have mechanically fastened joints, or Tungsten Long Life for higher speed belts with abrasive materials.



MATO MCS2 Belt Cleaner
Secondary Cleaner
MCS2 The MATO MCS2 Belt   Cleaning Unit is a multi-   bladed inline system. Each   blade is individually   mounted with a rubber   tensioning cushion to   ensure even blade pressure, and constant tip contact across the belt surface. The cleaner is designed to be slim-lined, so it can fit into almost any position, taking up the minimal amount of room possible. The MCS2 Secondary Cleaner is suitable for all applications and works extremely well on high speed fully vulcanised belts, ensuring a clog-free operation. The cleaner is easy to install and maintain, and can be installed virtually anywhere on the belt.

Features:
.  Fits into confined spaces
.  Outstanding performance on sticky material
.  Easy installation and maintenance
.  Various blade options
.  Multi-bladed with individual cushion mounts
.  Long blade life.

Tungsten Carbide Blades: MATO offers different grades of Tungsten Carbide to suit each application. Eg. Tungsten Impact where used with aggressive products or belts, Tungsten long life for high speed, abrasive, applications. (Not for use with mechanical fasteners.)

MATO MCS3 Belt Cleaner
Secondary Cleaner
 The MATO MCS3 Belt   Cleaning Unit is a versatile   performer suitable for many   specific applications. Due to   the nature of the design, the   MCS3 Belt Cleaner can   work equally well in either direction for reversing conveyors, and in all applications that require the use of mechanically fastened conveyor belts. The cleaner is designed to be slim-lined, so it can fit into almost any position, taking up the minimal amount of room possible. The MCS3 Belt Cleaner is a multi-bladed in-line system, each blade is individually mounted with a rubber tensioning cushion to ensure even blade pressure and constant tip contact across the belt surface, giving uniform flexibility for the blade in either direction.

Features:
.  Fits into confined spaces
.  Ideally suited for belts with run back
.  Easy installation and maintenance
.  Various blade options
.  Multi-bladed with individual cushion mounts
.  Ideally suited for reversing belts
.  Long blade life
.  Ideally suited for mechanical fasteners.

Tungsten Carbide Blades: MATO offers different grades of Tungsten Carbide to suit each application e.g. Tungsten Impact where the belts have mechanically fastened joints, or Tungsten Long Life for higher speed belts with abrasive materials.

MATO MCS4 Belt Cleaner
Secondary Cleaner
 The MATO MCS4 Belt   Cleaning Unit is a multi-   bladed in line system.   Each blade is individually   mounted with a rubber   tensioning cushion to   ensure even blade pressure, and constant tip contact across the belt surface. The cleaner is designed to be slim lined, so it can fit into almost any position, taking up the minimal amount of room possible. The MCS4 Secondary Cleaner is suitable for all applications and works extremely well on high speed fully vulcanised belts or mechanically fastened belts, ensuring a clog-free operation. The cleaner is easy to install and maintain, and can be virtually installed anywhere on the belt.

Features:
.  Fits into confined spaces
.  Outstanding performance on sticky material
.  Easy installation and maintenance
.  Various blade options
.  Multi-bladed with individual cushion mounts
.  Long blade life
.  Ideally suited for mechanical fasteners.

Tungsten Carbide Blades: MATO offers different grades of Tungsten Carbide to suit each application e.g. Tungsten Impact where the belts have mechanically fastened joints, or Tungsten Long Life for higher speed belts with abrasive materials.
