Conveyor belt fasteners

Medium Duty Conveyor Belt Lacing Systems

products_fasteners_md_generic

Medium Duty Belt Systems include:

.  Bolt Plate Fastener System MS
.  Comet System
.  GEM ELR System
.  Hammer System U20
.  Hammer System H20

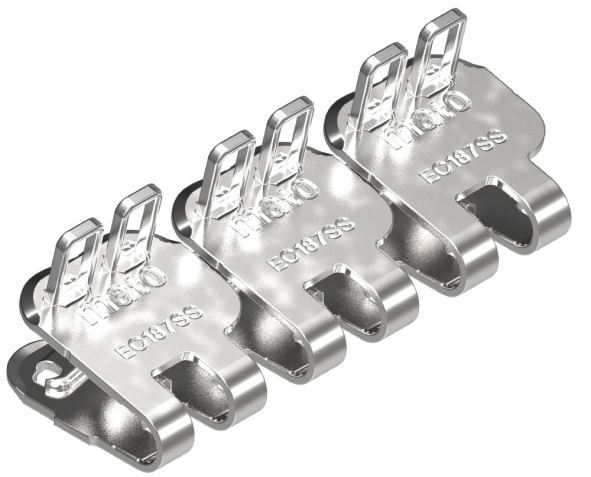

 EasyClip
      Mechanical Conveyor Belt Fasteners for use in light and medium duty belting applications. The main applications are:

• Packing and Handling
• Food Processing
• Washing Plants
• Asphalt Plants
• Wood Industry
EasyClip
EC62
EC125
EC187
Drum min 0 mm
Drum min 0 inch
50
2
75
3
100
4
max. Belt Strength kN/m
max. Belt Strength P.I.W
200
115
315
180
400
220
Belt Thickness mm
Belt Thickness inch
1.5-3.2
1/16-1/8
3.2-4.8
1/8-3/16
4.8-6.4
3/16-1/4
Belt Width
All Belt Widths
All Belt Widths
All Belt Widths
 Standard Sets
Galvanized Steel
EC62G
EC125G
EC187G
Drum min 0 mm
Drum min 0 inch
50
2
75
3
100
4
Belt Width mm
Belt Width inch
300-1500
12-60
100-1500
4-60
100-1500
4-60
Belt Thickness mm
Belt Thickness inch
1.5-3.2
1/16-1/8
3.2-4.8
1/8-3/16
4.8-6.4
3/16-1/4
Connecting Pin
ECP62NC
ECP125NC
ECP187NC

Stainless Steel
EC62SS
EC125SS
EC187SS
Drum min. 0 mm
Drum min. 0 inch
50
2
75
3
100
4
Belt Width mm
Belt Width inch
300-1500
12-60
100-1500
4-60
100-1500
4-60
Belt Thickness mm
Belt Thickness inch
1.5-3.2
1/16-1/8
3.2-4.8
1/8-3/16
4.8-6.4
3/16-1/4
Connecting Pin
ECP62NCS
ECP125NCS
ECP187NCS
 Connecting Pins
Nylon Coated Zinc Plated Cable
ECP62NC
ECP125NC
ECP187NC
Outside 0 mm
Outside 0 inch
2.15
0.085
3.60
0.142
5.20
0.205
Belt Width mm
Belt Width inch
300-1500
12-60
100-1500
4-60
100-1500
4-60
Belt Thickness mm
Belt Thickness inch
1.5-3.2
1/16-1/8
3.2-4.8
1/8-3/16
4.8-6.4
3/16-1/4

Nylon Coated Stainless Steel Cable
ECP62NCS
ECP125NCS
ECP187NCS
Outside 0 mm
Outside 0 inch
2.15
0.085
3.60
0.142
5.20
0.205
Belt Width mm
Belt Width inch
300-1500
12-60
100-1500
4-60
100-1500
4-60
Belt Thickness mm
Belt Thickness inch
1.5-3.2
1/16-1/8
3.2-4.8
1/8-3/16
4.8-6.4
3/16-1/4

Spring Steel
ECP62SP
ECP125SP
ECP187SP
Outside 0 mm
Outside 0 inch
2.15
0.085
3.60
0.142
5.20
0.205
Belt Width mm
Belt Width inch
300-1500
12-60
100-1500
4-60
100-1500
4-60
Belt Thickness mm
Belt Thickness inch
1.5-3.2
1/16-1/8
3.2-4.8
1/8-3/16
4.8-6.4
3/16-1/4

Stainless Spring Steel
ECP62SS
ECP125SS
ECP187SS
Outside 0 mm
Outside 0 inch
2.15
0.085
3.60
0.142
5.20
0.205
Belt Width mm
Belt Width inch
300-1500
12-60
100-1500
4-60
100-1500
4-60
Belt Thickness mm
Belt Thickness inch
1.5-3.2
1/16-1/8
3.2-4.8
1/8-3/16
4.8-6.4
3/16-1/4



 Bolt Plate Fasteners
 System MS
   MS Series  Belt Lacing and Repair Systems. The MATO Screw system can be used  for belt splicing and rip repairs. The systems offers:

.  High compression in the belt (vice like effect)

Lacing tools for this product


.  Easy Installation.
Fastener
size
Belt
Strength
P.I.W
Belt
thickness
inch
Min. pulley
diameter
inch
Material
No. of
fasteners
/box
No. of
fasteners
/bucket
Splice
width
/box
mm
Steel
Hardened
steel

1
140
190
1 1/2
2
2 1/4
2 1/2
160
220
330
300
450
620
450
3/16"-7/16"
3/16"-7/16"
5/16"-9/16"
7/16"-11/16"
9/16"-13/16"
9/16"-1 3/16"
3/4"-1"
12"
14"
14"
18"
30"
36"
42"
.
.
.
.
.
.
.
.
.
.
.
.
.
25
25
25
25
25
25
10
100
100
100
100
100
100
100
30"
30
30"
36"
40"
40"
20"
 Belt Lacing Tools
 To Suit MS
     .  The installation templates are available in a range of belt sizes
30", 36", 42", 48" and 54"
      Hand Nut Tightener
.  Useful in confined areas.
      Brace Nut Tightener
.  A complete range of tools is available including power tools.
      Belt Punch
.  For punching out the bolt holes. The punched out belt plugs are
ejected through the punch.
     Bolt Breakers
.  Used in pairs to break off the surplus length of bolts.
  Hammer System U20
  Fastener for Industry and Agriculture
Hammer System U20 The MATO Hammer System U20 is designed for use  in belts in the thickness range of 4-7mm. The system  is  particularly suitable for operation on small pulleys and offers extremely long service life. The main applications are:


Connecting pins for this product
 Skiver for this product

  .  Agriculture.
  .  Specially for splicing round hay baler  belts.
  .  Industry.
 Belt strength in kN/m
up to 450
up to 450
up to 450
 Belt thickness in mm
4-5
5-6
6-7
 Fasteners:



 Series
U24AS
U24BS
U24CS
 Connecting pins:



 Zinc plated cable
K1
K2
K2
 Armoured cable
O1K
O2K
O2K
 Diameter in mm
3.0
3.3
3.3
 Hammer System H20
 Fastener for Industry and Agriculture
Hammer System U20  The MATO Hammer System H20 is designed for use in belts in the   thickness range of 5-7mm. The system is particularly suitable for   operation on small pulleys and offers extremely long service life. The   main applications are:





  .  Agriculture.
  .  Specially for splicing round hay baler belts.
  .  Industry.
 Belt strength in kN/m
up to 450
 Belt thickness in mm
5-6
 Fasteners:

 Series
H24BS
 Connecting pins:

 Zinc plated cable
K2
 Armoured cable
O2K
 Diameter in mm
3.3



 Connecting Pins
 To Suit Medium Duty Fasteners
 LS
 .  Low cost wire    version:
- Stainless steel  cable		  K
 . Flexible connecting pins   available in coils 10 or   30m long.
 . Zinc plated spring steel
 L
 .  Low cost wire version:
- Zinc plated cable		  OK
 . Flexible connecting pins   available in coils 10 or 30m long.
 . Armoured cable (wear  resistant).
 Accsessories For Lacing machines
 Hammer Pin Driver

 .  Using the hammer pin driver the MATO connecting pins can be
   installed easily and without damage.
 Screw Pin Insertion Tool

 .  Manual insertion tool for screw connecting pin.
   The screw connecting pin can be installed quickly and easily.
 Screw Pin Insertion Tool

 .  Pneumatic insertion tool for screw connecting pin.
  The screw connecting pin can be installed quickly and easily.
Accsessories
 Hand Skiver

 .  This skiver is a quick and easy tool for rebating the belt, allowing
 the fasteners to lie flush with the belt surface. This reduces wear
 between fasteners and scrapers resulting in longer lifetime of both.
 Handsaver

 .  Provides a safe and comfortable method of handling awkward
objects and saves trapped fingers and cut hands.
 .  Flats, channels, angles, tubes, rounds, H sections, conveyor
belting may all be lifted and dragged easily, safely and quickly.
with this versatile tool
 .  Corrosion resistant finish.
 Belt Marker  Belt Knife
 Belt Marking Pen-Silver
